1、 Overview

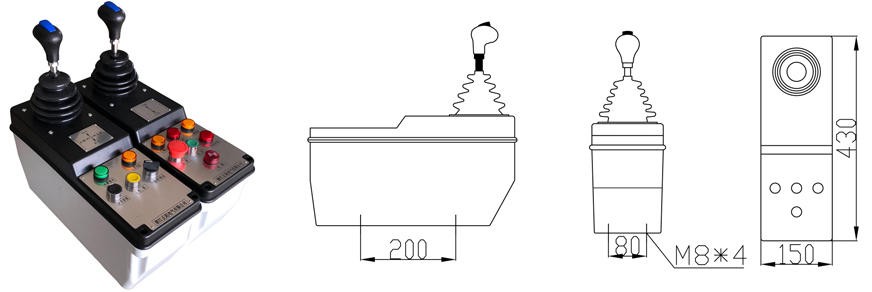

The QTA6 linkage platform is installed as a whole, using engineering plastic injection molding, with a beautiful appearance and compact structure. Equipped with WLK3 type master controller, it has clear hand feel, clear gear position, zero position self resetting and locking device, and easy component wiring, disassembly, and maintenance. Each institution can install potentiometers, and the panel is equipped with various indicator lights and control buttons. All use Schneider contacts, ensuring safe and reliable operation with a long service life.

2、Scope of Application

The QTA6 linkage console is mainly used in control circuits with AC 50Hz (60Hz) rated voltage of 380V (440V), rated current of AC15A, DC13A and below, to control the motor starting, speed regulation, braking, commutation and other special functions of lifting and transportation machinery. According to different usage requirements, the product can achieve dual mechanism linkage/single action.

3、 Execution standards

GB 14048.1 "General Principles for Low Voltage Switchgear and Control Equipment" GB 14048.5 "Part 5-1 for Low Voltage Switchgear and Control Equipment" JB/T 6748-2013 "Crane Control Console"

4、 Performance and Technical Parameters
